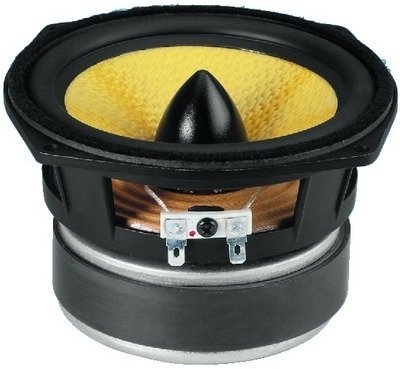

HiFi midrange and bass-midrange speaker, 80WMAX, 8Ω
With Kevlar cone and phase plug, a midrange speaker of the extra class which can also be used as a bass-midrange speaker in small bookshelf speaker systems providing a deep bass reproduction. However, an optimum sound source for the entire vocal range above 200Hz!
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 45Hz
- Max. frequency range : f3-10,000Hz
- Music power : 80WMAX
- Power rating (P) : 50WRMS
- SPL (1W/1m) : 89dB
- Suspension compl. (Cms): 1.23mm/N
- Moving mass (Mms): 10g
- Mech. Q factor (Qms): 5.54
- Electr. Q factor (Qes): 0.32
- Total Q factor (Qts): 0.30
- Equivalent volume (Vas): 15.5 l
- DC resistance (Re): 6Ω
- Force factor (BxL): 7.5Tm
- Voice coil induct. (Le): 0.75mH
- Voice coil diameter: 35.5mm
- Voice coil former: Kapton
- Linear excursion (XMAX): ±3.25mm
- Eff. cone area (Sd): 95cm2
- Magnet weight : 550g + 17g
- Weight : 1.52kg
