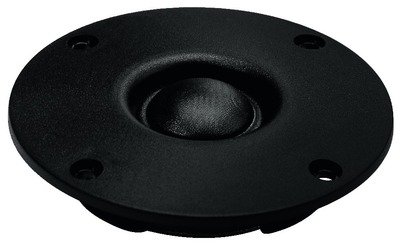

HiFi dome tweeter, 130WMAX, 8Ω
Textile soft dome with inside dampening, highest linearity with good efficiency, especially silky and brilliant sound.
Suitable for all HiFi applications of high requirements.
ILMAG 11
"... a tweeter with a frequency response reaching far into the high range, good omnidirectional radiation and of high power capability ..."
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 1.2kHz
- Max. frequency range : fx-22kHz
- Rec. crossover freq. (12dB): 3kHz
- Music power : 130WMAX
- Power rating : 80WRMS
- SPL (1W/1m) : 89dB
- Voice coil diameter: 25mm
- Magnet diameter: 60mm
- Mounting cutout : Ø 71mm
- Mounting depth : 23mm
- Dimensions: Ø 96.5mm
- Weight : 0.3kg
