The TB Series from MONACOR:
Innovative technology, sophisticated materials and a perfect workmanship are typical of these speakers. Bass speakers, midrange speakers, tweeters and full range HiFi speakers of top-class quality can be combined to result in perfect HiFi systems.

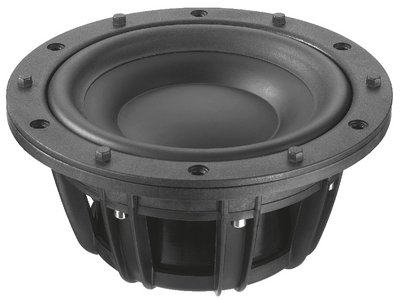

High-end bass-midrange speaker, 150WMAX, 8Ω
Ultimate HiFi bass-midrange speaker for a dynamic and pulsed reproduction with an extra large-sized voice coil in the neodymium drive system, a glass-fibre reinforced nylon and metal diecast basket of a sandwich design. With a perfectly dampened polypropylene cone which features a very high stiffness at the same time. The cone and dustcap are manufactured in one piece which is suspended in a surround of special long-excursion profile. Completely compression-free due to a perfect ventilation of all drive elements and of very long excursion. Perfectly suitable for the use as a bass-midrange speaker with subwoofer addition or in 4-way systems.
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 46Hz
- Max. frequency range : f3-3,000Hz
- Music power : 150WMAX
- Power rating (P) : 75WRMS
- SPL (1W/1m) : 88dB
- Suspension compl. (Cms): 0.5mm/N
- Moving mass (Mms): 24g
- Mech. Q factor (Qms): 5.59
- Electr. Q factor (Qes): 0.26
- Total Q factor (Qts): 0.25
- Equivalent volume (Vas): 12 l
- DC resistance (Re): 6.7Ω
- Force factor (BxL): 13.4Tm
- Voice coil induct. (Le): 1.2mH
- Voice coil diameter: 75mm
- Voice coil former: glass fibre
- Linear excursion (XMAX): ±4.5mm
- Eff. cone area (Sd): 133cm2
- Magnet weight : neodymium
- Weight : 2.3kg
