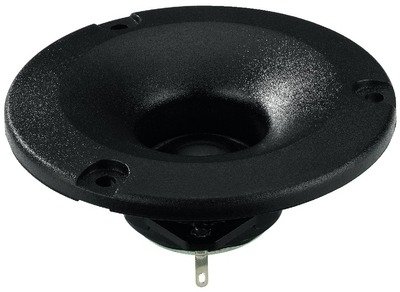

HiFi tweeter, 8Ω, 90WMAX
High-power tweeter with coated silk cone and horn front attachment. High efficiency far above average with a very wide bandwidth and a clear radiation. Suitable for universal use, from the HiFi range and party speakers to high-performance car HiFi applications.
ILMAG 08
"Very smooth frequency response. Clear decay. Nothing to criticise."
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 1,600Hz
- Max. frequency range : fx-16,000Hz
- Rec. crossover freq. (12dB): 3,500Hz
- Music power : 90WMAX
- Power rating : 45WRMS
- SPL (1W/1m) : 97dB
- Voice coil diameter: 25mm
- Magnet diameter: 35mm
- Mounting cutout : Ø 55mm
- Mounting depth : 37mm
- Dimensions: Ø 90mm
- Weight : 120g
