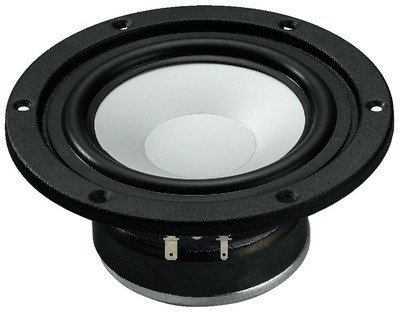

High-tech bass-midrange speaker, 100WMAX, 8Ω
With cone and dustcap completely of aluminium, special reinforcing, 6-hole screw connection, extra dynamic sound and a very wide bandwidth, a midrange speaker of high efficiency and high power capability for high-end speaker systems and a perfect bass-midrange speaker for small speaker systems.
ILMAG 12
+ linear frequency response
+ stable cones
+ good price-performance ratio
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 48Hz
- Max. frequency range : f3-4,500Hz
- Music power : 100WMAX
- Power rating (P) : 50WRMS
- SPL (1W/1m) : 88dB
- Suspension compl. (Cms): 1.2mm/N
- Moving mass (Mms): 9g
- Mech. Q factor (Qms): 5.07
- Electr. Q factor (Qes): 0.34
- Total Q factor (Qts): 0.32
- Equivalent volume (Vas): 10.8 l
- DC resistance (Re): 6.4Ω
- Force factor (BxL): 7.22Tm
- Voice coil induct. (Le): 0.6mH
- Voice coil diameter: 25mm
- Voice coil former: Kapton
- Linear excursion (XMAX): ±2.3mm
- Eff. cone area (Sd): 80cm2
- Magnet weight : 440g
- Weight : 1kg
