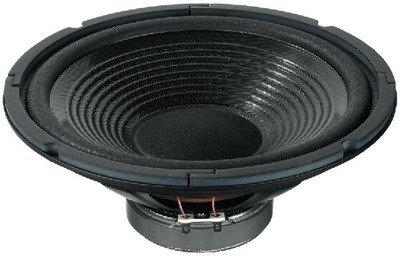

Bass speaker, 75WMAX, 8Ω
Low cutoff frequency, to be used up to the midrange.
This series of speakers with polypropylene cone is especially well-suited for replacing defective 8Ω speakers in HiFi speaker systems.
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 30Hz
- Max. frequency range : f3-3,000Hz
- Music power : 75WMAX
- Power rating (P) : 37WRMS
- SPL (1W/1m) : 93dB
- Suspension compl. (Cms): 0.92mm/N
- Moving mass (Mms): 30g
- Mech. Q factor (Qms): 3.29
- Electr. Q factor (Qes): 1.25
- Total Q factor (Qts): 0.90
- Equivalent volume (Vas): 155 l
- DC resistance (Re): 6.5Ω
- Force factor (BxL): 5.4Tm
- Voice coil induct. (Le): 0.8mH
- Voice coil diameter: 35.5mm
- Voice coil former: aluminium
- Linear excursion (XMAX): ±3.5mm
- Eff. cone area (Sd): 346cm2
- Magnet weight : 370g
- Weight : 1.7kg
