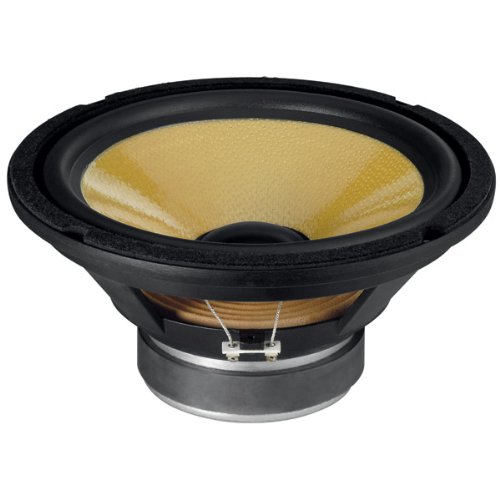

Top HiFi bass speaker, 150WMAX, 8Ω
Finely textured Kevlar cone, aluminium diecast basket, long excursion, a very deep bass in compact bass-reflex cabinets already. In closed cabinets, a dry bass reproduction comfortable to listen to (particularly suitable for use in rooms of rumbling sound). Suitable for any HiFi and high-end application.
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 23Hz
- Max. frequency range : f3-3,000Hz
- Music power : 150WMAX
- Power rating (P) : 100WRMS
- SPL (1W/1m) : 90dB
- Suspension compl. (Cms): 0.94mm/N
- Moving mass (Mms): 45g
- Mech. Q factor (Qms): 5.25
- Electr. Q factor (Qes): 0.45
- Total Q factor (Qts): 0.41
- Equivalent volume (Vas): 204 l
- DC resistance (Re): 6.1Ω
- Force factor (BxL): 9.4Tm
- Voice coil induct. (Le): 0.7mH
- Voice coil diameter: 50mm
- Voice coil former: Kapton
- Linear excursion (XMAX): ±4.75mm
- Eff. cone area (Sd): 346cm2
- Magnet weight : 840g + 50g
- Weight : 3kg
