High-Quality HiFi Speakers
With polypropylene cone and very strong, ventilated magnetic systems. An approved technique for versatile applications.

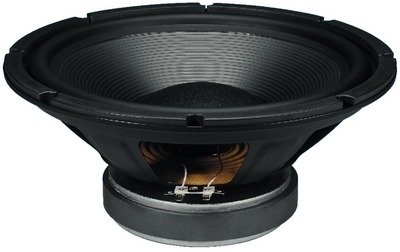

HiFi bass speaker, 200WMAX, 8Ω
An all-round speaker of high power capability with 8-hole screw connection and long-term stable rubber surround, ferrofluid-cooled, a powerful bass reproduction from bass-reflex cabinets of medium size.
Klang+Ton
"The recommended specialist, at an attractive price, for compact standing speaker systems."
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 22Hz
- Max. frequency range : f3-2,000Hz
- Rec. crossover freq. (fmax.): 1,500Hz
- Music power : 200WMAX
- Power rating (P) : 100WRMS
- SPL (1W/1m): 92dB
- Suspension compl. (Cms): 0.95mm/N
- Moving mass (Mms): 55g
- Mech. resistance (Rms): 3.2kg/s
- Mech. Q factor (Qms): 2.40
- Electr. Q factor (Qes): 0.26
- Total Q factor (Qts): 0.24
- Equivalent volume (Vas): 330 l
- DC resistance (Re): 6.1Ω
- Voice coil induct. (Le): 1.5mH
- Voice coil diameter: 50mm
- Voice coil former: aluminium
- Voice coil winding height: 17mm
- Air gap height: 8mm
- Linear excursion (XMAX): ±4.5mm
- Eff. cone area (Sd): 510cm2
- Volume displacement (Vd): 229.5cm3
- Force factor (BxL): 13.4Tm
- Reference efficiency (No): 1.3%
- Magnet diameter: 156mm
- Magnet weight : 1.4kg
- Mounting cutout : Ø 278mm
- Mounting depth : 136mm
- Dimensions: Ø 305mm
- Weight : 4.2kg
- Rec. net cabinet volume:
- Closed: 45 l
- Bass-reflex: 85 l
