High-Tech Speakers
with carbon fibre cone, diecast basket and drilled pole core with convincing bass and also midrange characteristics.

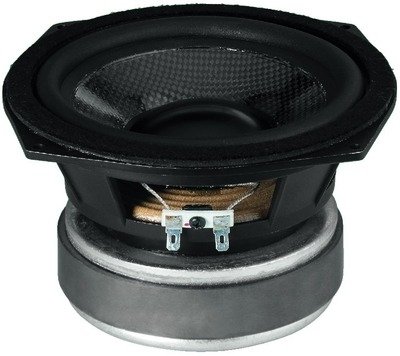

High-power HiFi bass-midrange speaker, 120WMAX, 8Ω
Exceptionally large voice coil (50mm), parameters for a deep bass reproduction, very long excursion, a bass speaker for interesting dual arrangements in very slim 3-way high-power speaker systems and for 2-way bookshelf speakers of high power capability.
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 30Hz
- Max. frequency range : f3-6,000Hz
- Music power : 120WMAX
- Power rating (P) : 80WRMS
- SPL (1W/1m) : 89dB
- Suspension compl. (Cms): 1.71mm/N
- Moving mass (Mms): 17g
- Mech. Q factor (Qms): 4.85
- Electr. Q factor (Qes): 0.33
- Total Q factor (Qts): 0.31
- Equivalent volume (Vas): 38 l
- DC resistance (Re): 6Ω
- Force factor (BxL): 7.6Tm
- Voice coil induct. (Le): 0.7mH
- Voice coil diameter: 50mm
- Voice coil former: glass fibre
- Linear excursion (XMAX): ±4.75mm
- Eff. cone area (Sd): 127cm2
- Magnet weight : 29.5+1.76oz.
- Weight : 2.5kg
