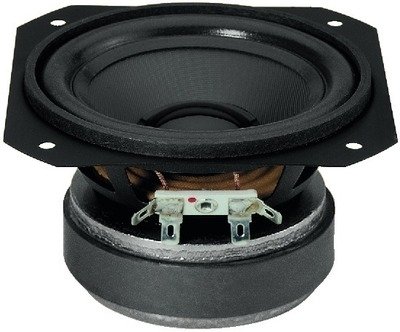

SPP-110/8 Mini Hifi Bass Speaker - 101060

HiFi bass-midrange speakers, 60W_MAX, 8Ω (/8) and 4Ω (/4)
With carbonised plastic cone, drilled pole core, linear wide frequency response in very small cabinets.

SPP-110/4 = 4Ω

SPP-110/8 = 8Ω
Technical Specification

• Impedance (Z) : 8Ω
• Resonant frequency (fs): 55Hz
• Max. frequency range : f3-8,000Hz
• Music power : 60W_MAX
• Power rating (P) : 30W_RMS
• SPL (1W/1m) : 90dB
• Suspension compl. (Cms): 1.89mm/N
• Moving mass (Mms): 4.4g
• Mech. Q factor (Qms): 2.01
• Electr. Q factor (Qes): 0.46
• Total Q factor (Qts): 0.37
• Equivalent volume (Vas): 8 l
• DC resistance (Re): 6.5Ω
• Force factor (BxL): 4.6Tm
• Voice coil induct. (Le): 0.4mH
• Voice coil diameter: 25.5mm
• Voice coil former: aluminium
• Linear excursion (X_MAX): ±2mm
• Eff. cone area (Sd): 55cm²
• Magnet weight : 280g
• Weight : 0.9kg
