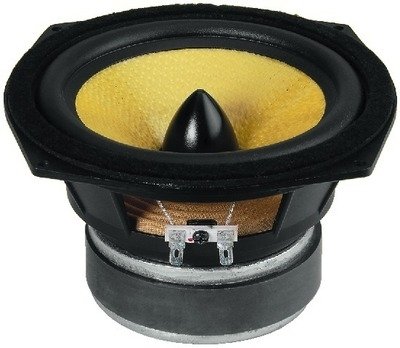

HiFi bass-midrange speaker, 100WMAX, 8Ω,
high-tech speaker in an aluminium diecast basket with
Kevlar cone and phase plug for an optimum transient response, free of resonances and a high thermic capability, a very linear and wide bandwidth radiation, an excellent bass-midrange speaker with large level reserves for HiFi applications.
HiFi-Selbstbau, Online magazine 2008
"A high-tech bass-midrange speaker of a high quality and an appealing design, the high quality can be felt straightaway."
Klang+Ton
"Can be recommended without reservation."
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 30Hz
- Max. frequency range : f3-7,000Hz
- Music power : 100WMAX
- Power rating (P) : 60WRMS
- SPL (1W/1m) : 89dB
- Suspension compl. (Cms): 1.71mm/N
- Moving mass (Mms): 17g
- Mech. Q factor (Qms): 4.85
- Electr. Q factor (Qes): 0.33
- Total Q factor (Qts): 0.31
- Equivalent volume (Vas): 38 l
- DC resistance (Re): 6Ω
- Force factor (BxL): 7.6Tm
- Voice coil induct. (Le): 0.7mH
- Voice coil diameter: 35.5mm
- Voice coil former: Kapton
- Linear excursion (XMAX): ±4.75mm
- Eff. cone area (Sd): 127cm2
- Magnet weight : 500g + 17g
- Weight : 1.71kg
