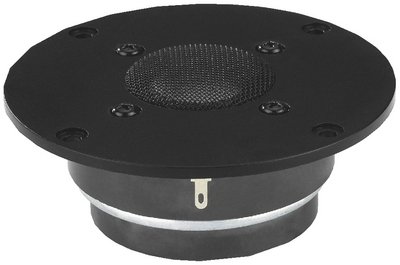

Top HiFi dome tweeter, 8Ω, 80WMAX
Tweeter with titanium-coated silk cone for high requirements of an especially elegant design with protective grille. Dual magnet and ferrofluid cooling. Wide frequency response with favourable crossover to the midrange speaker. Suitable for all high-quality HiFi applications.
ILMAG
"Simply an elegant appearance."
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 1,200Hz
- Max. frequency range : fx-22,000Hz
- Rec. crossover freq. (12dB): 2,500Hz
- Music power : 80WMAX
- Power rating : 40WRMS
- SPL (1W/1m) : 90dB
- Voice coil diameter: 25mm
- Magnet diameter: 70mm
- Mounting cutout : Ø 72mm
- Mounting depth : 40mm
- Dimensions: Ø 100mm
- Weight : 610g
