NEODYMIUM tweeters with excellent sound qualities at a sensational low price. The silk soft dome cone with optimized geometry is surrounded by a specially adapted front plate, which enables a particularly linear reproduction even at lower frequencies and a high efficiency at the same time.

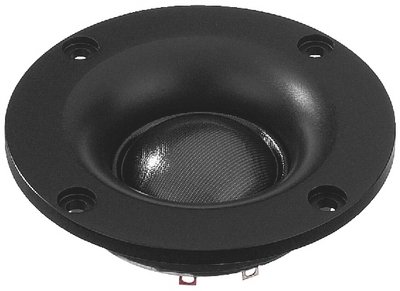

Neodymium HiFi tweeter, 80WMAX, 8Ω
A tweeter of a particularly elegant design. Low magnetic dispersion and mechanically very compact due to the application of a high-power neodymium magnet. Especially suitable for building smaller systems of all kinds, but also for the use in HiFi standing speakers of high quality, e.g. in D'Appolito arrangements. A particular fine reproduction and natural sound.
Hobby HiFi 01/2008
"This speaker impresses by a well-balanced, linear and a surprisingly wide bandwidth. Perfect!"
HiFi-Selbstbau, Online magazine 2008
"The DT-25N is a sophisticated tweeter of compact size. The frequency response is perfect up to 8kHz. The favourable price is an advantage, too."
Technical Specification
- Impedance (Z) : 8Ω
- Resonant frequency (fs): 1,600Hz
- Max. frequency range : fx-20,000Hz
- Rec. crossover freq. (12dB): 2,500Hz
- Music power : 80WMAX
- Power rating : 40WRMS
- SPL (1W/1m) : 95dB
- Voice coil diameter: 25mm
- Magnet diameter: 33mm
- Mounting cutout : Ø 46mm
- Mounting depth : 21mm
- Dimensions: Ø 66mm
- Weight : 70g
